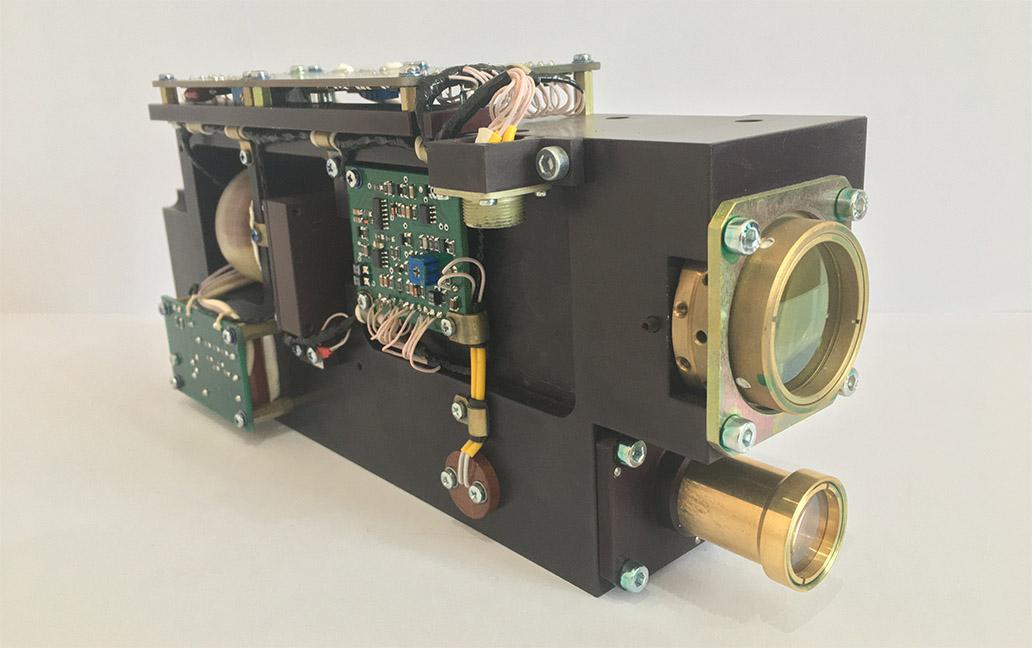

Rangefinder D-07-02

Brief technical specification

• Range of measuring distance - 160 m - 10000m
• The provided error of measurement of distance - ± 5 m
• The wavelength of the probe pulse is 1.06 µm
• The divergence of the probe pulse - not more than 0.45 mrad
• Power + (22 - 29) Volt
  • Consumption: in standby mode - no more than 0.3 A
  • Peak - no more than 3 A
• The energy of the probe pulse is 90-100 mJ
• Number of targets - not limited
• The distance between neighboring targets is at least 75 m
• Type of range information exchange - start-stop channel
• Measurement frequency - 3 measurements with an interval of 1 second with maintaining the average rate of 6 times per minute.
• The power supply voltage of the Transceiver is from 22 to 29 V DC.
• The rangefinder is resistant to the effects of low working temperature minus (40 ± 3) ° С.
• The rangefinder is resistant to the effects of high working temperature plus (50 ± 3) ° C.
• The rangefinder is durable of sinusoidal vibration in the frequency range from 39 to 500 Hz with acceleration amplitude (59 ± 12) m / s2 ((6 ± 1.2) g) in three coordinate axes.
• The rangefinder is durable of sinusoidal vibration on the frequency (25 ± 0.5) Hz with an acceleration amplitude (19.6 ± 3.9) m / s2 ((2 ± 0.4) g) in three coordinate axes.
• The rangefinder is durable to the multiple mechanical shocks with peak acceleration value from (196 ± 40) m / s2 ((20 ± 4) g) with a shock acceleration duration of 5 to 15 ms in three coordinate axes.
• The rangefinder is durable to the single mechanical shocks with peak acceleration value from (735 ± 147) m / s2 ((75 ± 15) g) with a shock acceleration duration of 1 to 5 ms in three coordinate axes.

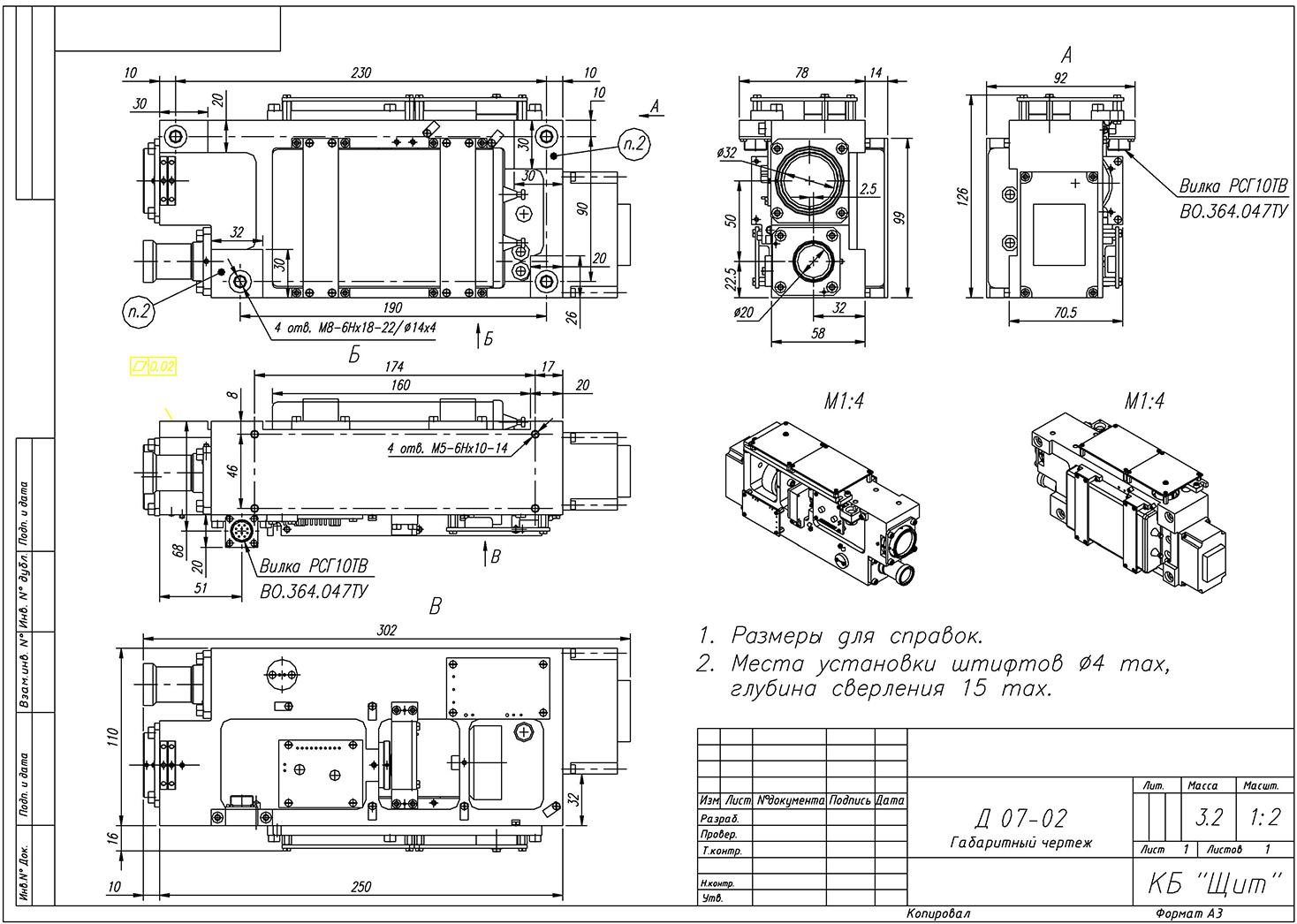

• Dimensions mm: 92x126x302
• Rangefinder weight - 3.2kg
